RVBG

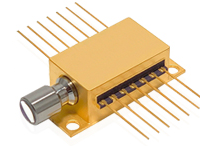

The RVBG is a wavelength-stabilized single-mode or multimode laser diode that offers a narrow linewidth output in wavelengths from 633nm to 1064nm, with output powers up to 1.5W. This highly customizable laser diode offers package options ranging from components as basic as a TO-56 or 14-pin Butterfly package to OEM modules with electronics, or UL/CE and IEC-certified turn-key systems. The base product lines come standard with a circularized and collimated open output beam, internal thermistor, and ESD protection, while the fiber-coupled options should expect ≈ 50% power loss from base values in either a PM or MM fiber. Designed to replace expensive DFB, DBR, fiber, and external cavity lasers, our spectrum-stabilized lasers offer superior wavelength stability over time, temperature, and vibration, and are manufactured to meet the most demanding wavelength requirements.

This line of laser diodes can be configured with many different options and package types to fit any application need. Whether you want base TO-56 or 14-Pin Butterfly components, OEM modules, or a fully turn-key package, we have the options to get you exactly what you need and make your project a success! Use the part number configurator to determine your desired configuration or talk to one of our knowledgeable Product Managers today for tailored assistance in choosing the right setup for your needs.

If your exact needs are not in our popular configurations, define your ideal laser module and let us find the best solution!

Benefits:

• Product and technology capabilities and applications:
  • Our products and technology have enabled the widespread use of these compact narrow-linewidth sources for chemical analysis, bio-medical, fiber laser, and scientific markets
  • This series specializes in the integration of semiconductor lasers, high-reliability micro-optic packaging, precision control electronics, and digital control for these applications.
• Features and benefits of the HECL technology:
  • With HECL technology, the single-spatial mode laser’s spectral bandwidth reduces to a single-frequency, single longitudinal mode that has an extremely narrow linewidth
  • The R-Series offers side mode suppression ratios that provide extremely high signal to noise ratio and exhibit highly stable wavelength versus temperature characteristics which eliminates the need for complex control circuitry
• Customization options and additional offerings:
  • The R-Series is highly customizable from free-spaced and fiber-coupled units designed for integration to full turnkey systems
  • In addition, we offer high-throughput Raman probes for both single and dual laser sources. These probes can be configured for different wavelengths, cut-on wavenumbers, input and output fiber core diameters, and spectrometers.

If you have any questions or need more information, please contact us.
