SHIPS TODAY SMX-SM
Laser Diode, Single mode, 1310-1670nm, up to 800mW
Key Features:
- Wavelength: 1310nm to 1670nm
- Output Power: Up to 50W
- High efficiency
- Thermally stable
- High output power and dynamic range
- Standard low-cost packaging
- Custom design capability
- SOA/DFB configurations
There are many different package types, wavelengths, output powers, and options to choose from. Get help selecting the right configuration for you!
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'mb_woo_new_single_product_image' not found or invalid function name in /srv/users/rpmclaserscom/apps/rpmclasers-dev/public/wp-includes/class-wp-hook.php on line 324
POPULAR CONFIGURATIONS:
Picture |
Part Number |
Part Description |
Datasheet |
|
|---|---|---|---|---|
|
TO9-140 |
Singlemode Laser Diode, 1650nm, 240mW, 5µm emitter, 9mm package, No Cap |
|
Get Quote |
|
|
TO9-108 |
Singlemode Laser Diode, 1640nm, 250mW, 4µm emitter, 9mm package, No Cap |
|
Get Quote |
|
14BF-125 |
Singlemode Laser Diode, 1310nm, 275mW (500mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC |
|
Get Quote |
|
|
TO9-176 |
Singlemode Laser Diode, 1655nm, 325mW (400mW QCW), 5µm emitter, 9mm package, No Cap |
|
Get Quote |
|
|
TO9-174 |
Singlemode Laser Diode, 1650nm, 350mW (500mW QCW), 5µm emitter, 9mm package, No Cap |
|
Get Quote |
|
|
TO9-170 |
Singlemode Laser Diode, 1625nm, 250mW (700mW QCW), 4µm emitter, 9mm package, No Cap |
|
Get Quote |
|
TO9F-111 |
Singlemode Laser Diode, 1310nm, 200mW (650mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor |
|
Get Quote |
|
C-131 |
Singlemode Laser Diode, 1650nm, 450mW (1050mW QCW), 5µm emitter, C-mount package |
|
Get Quote |
|
|
C-123 |
Singlemode Laser Diode, 1625nm, 400mW (900mW QCW), 4µm emitter, C-mount package |
|
Get Quote |
|
B-146 |
Singlemode Laser Diode, 1625nm, 400mW (900mW QCW), 4µm emitter, B-mount package |
|
Get Quote |
|
|
B-163 |
Singlemode Laser Diode, 1320nm, 800mW, 4µm emitter, B-mount package |
|
Get Quote |
|
|
B-124 |
Singlemode Laser Diode, 1660nm, 450mW (1050mW QCW), 5µm emitter, B-mount package |
|
Get Quote |
|
|
TO9F-106 |
Singlemode Laser Diode, 1660nm, 100mW (300mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor |
|
Get Quote |
|
|
TO9F-105 |
Singlemode Laser Diode, 1640nm, 100mW (300mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor |
|
Get Quote |
|
|
14BF-110 |
Singlemode Laser Diode, 1625nm, 160mW (495mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC |
|
Get Quote |
|
|
14BF-106 |
Singlemode Laser Diode, 1655nm, 175mW (495mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC |
|
Get Quote |
|
|
C-155 |
Singlemode Laser Diode, 1320nm, 800mW (1500mW QCW), 4µm emitter, C-mount package |
|
Get Quote |
|
|
TO9-248 |
Singlemode Laser Diode, 1310nm, 400mW, 4µm emitter, 9mm package, No Cap |
|
Get Quote |
|
|
C-121 |
Singlemode Laser Diode, 1555nm, 600mW (1800mW QCW), 4µm emitter, C-mount package |
|
Get Quote |
|
|
B-115 |
Singlemode Laser Diode, 1555nm, 600mW (1800mW QCW), 4µm emitter, B-mount package |
|
Get Quote |
|
|
TO9F-104 |
Singlemode Laser Diode, 1565nm, 140mW (550mW QCW), Fiber Coupled 9mm package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor |
|
Get Quote |
|
|
14BF-102 |
Singlemode Laser Diode, 1550nm, 225mW (500mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC |
|
Get Quote |
|
|
14BF-105 |
Singlemode Laser Diode, 1550nm, 200mW (675mW QCW), Singlemode Fiber Coupled 14-pin Butterfly package, 9µm, 0.22NA, 1m long fiber w/ FC/PC connector, PD, Thermistor, TEC |
|
Get Quote |
The SMX-SM is an American-made, high-power, thermally stable, cost-effective single-mode laser diode. It is available at wavelengths from 1310nm to 1670nm making it perfect for medical, military, aerospace, LIDAR, free-space communications, and more! With a patented EPI structure, low-cost packaging, DFB & SOA configurations, ISO-certified supply chain with full lifecycle traceability, focus on ease of integration and custom design capabilities, this laser diode family is an excellent choice for reliable, high-power InP devices. We deliver the highest available power at infrared wavelengths, and when necessary, we will further optimize the design of our lasers to meet our customers’ specific optical and electrical performance needs. We have several standard packages and configurations available, as well as customization options. If you do not see exactly what you are looking for, let us know! We may have a standard product that suits your needs. However, we have many options to tailor a solution that fits your specifications. Diodes, bars, and packages are tested to meet customer and market performance demands.
Product Range:
Free-Space Package Types:

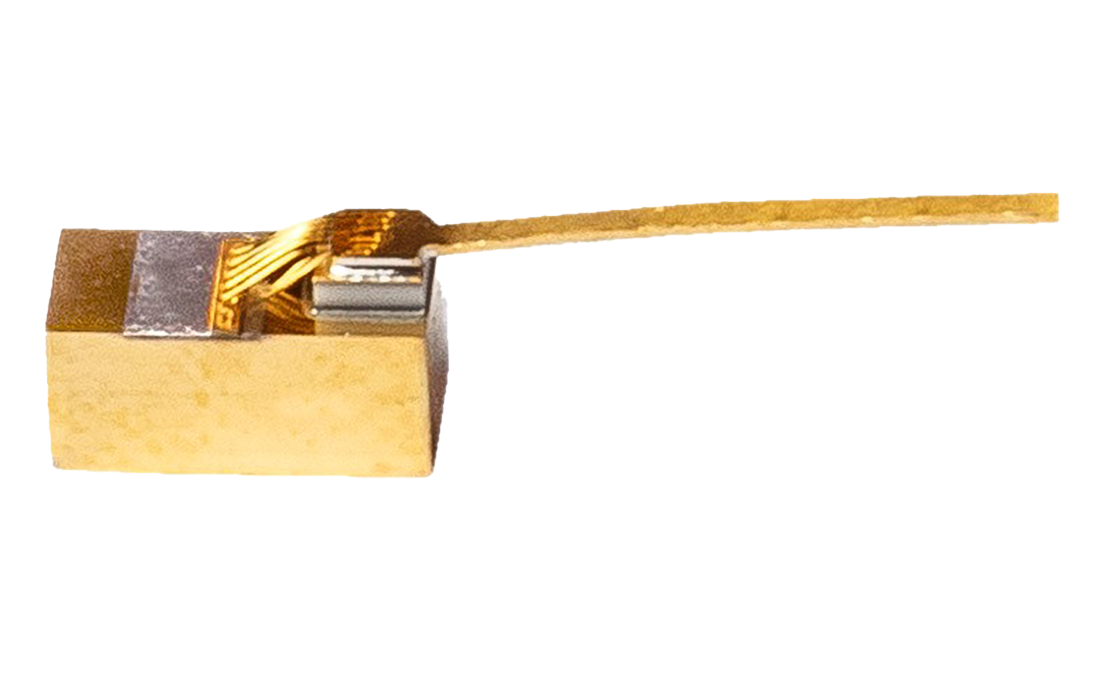

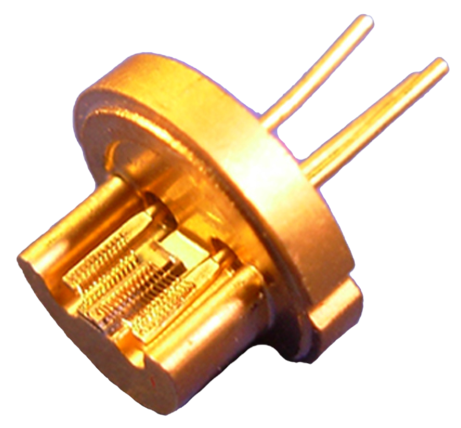

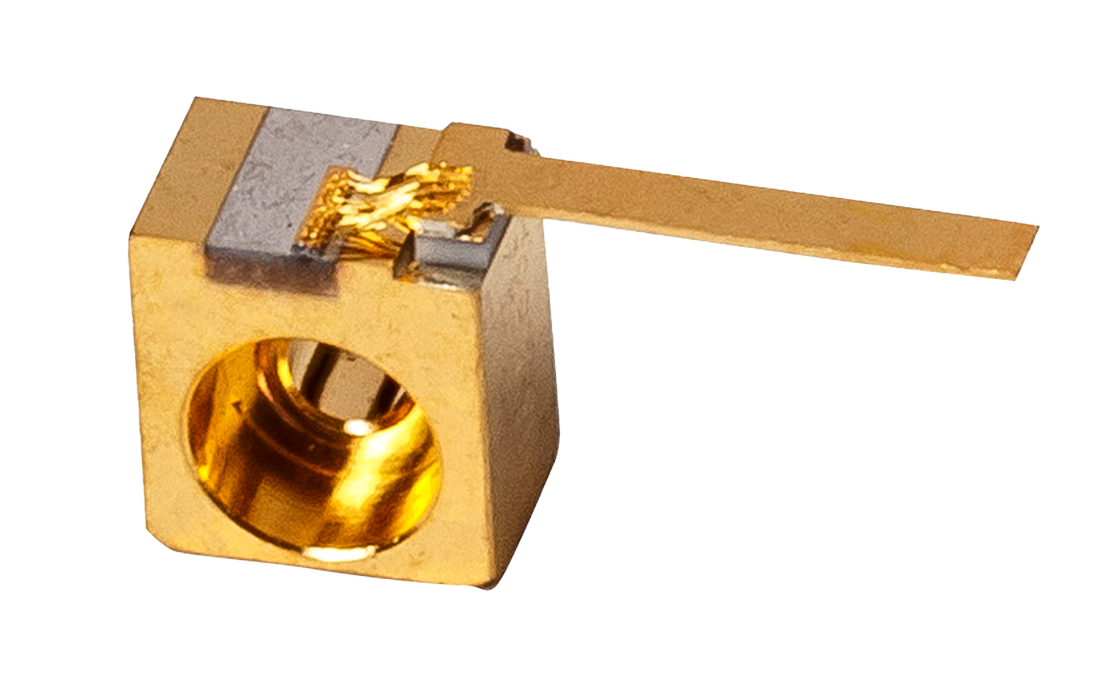

| B-Mount Package | C-Mount Package | 9mm TO-9 Package |
|
|
|
Free-Space Options:
Optional attachments:
- Optical Isolator
- Internal TEC
- Thermistor
- SOA/RSOA
Lensing Options
- Best Collimation FAC Lens
- Squared Beam FAC Lens
Fiber-Coupled Package Types:

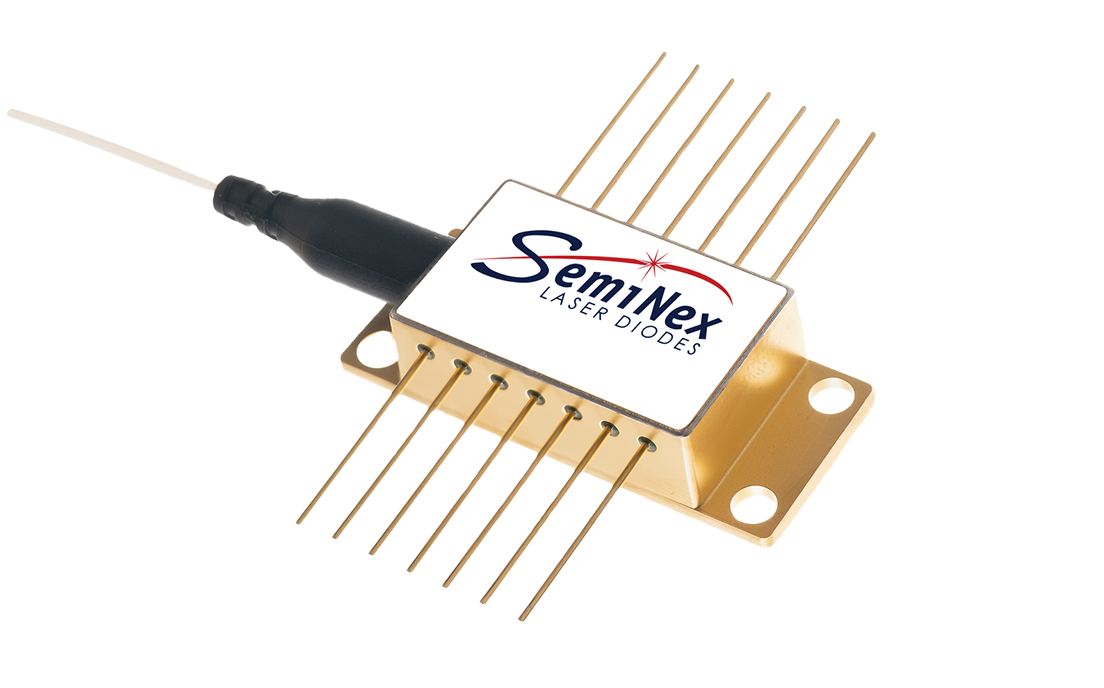

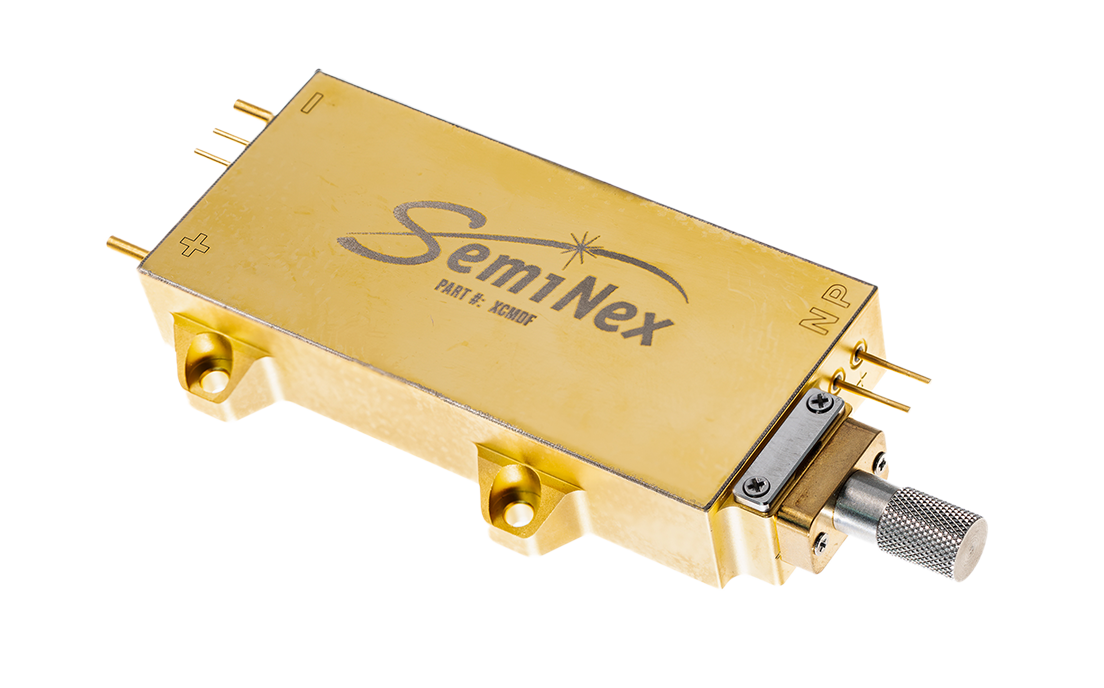

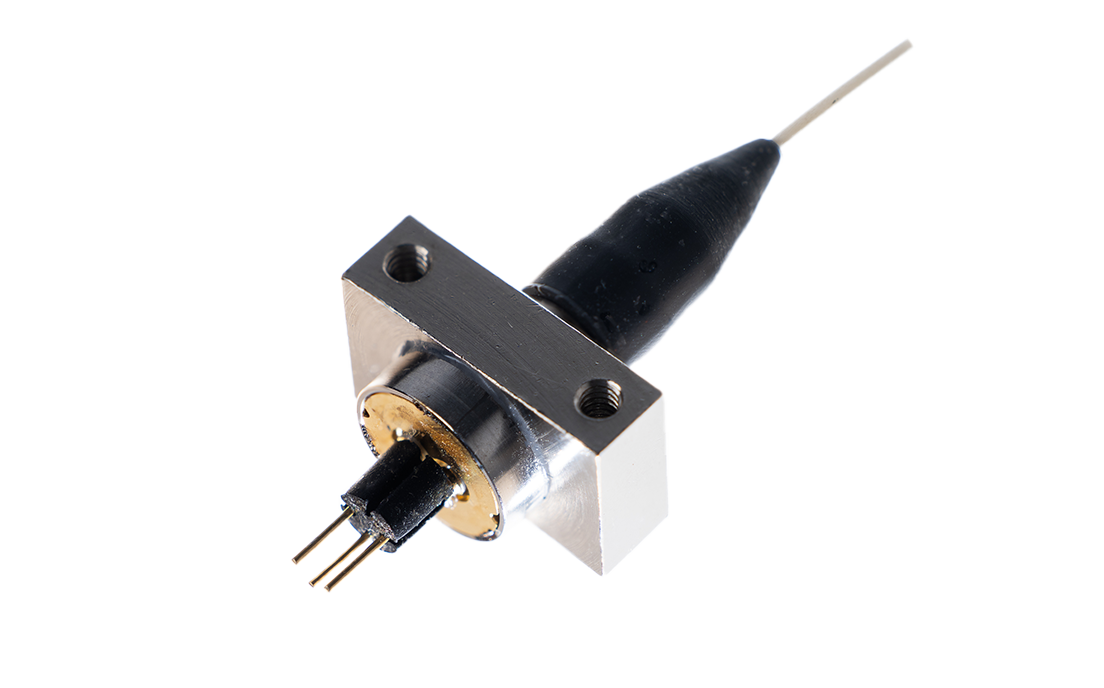

| 14-Pin Butterfly | 9mm Fiber-Coupled Package | XCM Module |
|
|
 |
Fiber-Coupled Options:
Optional attachments:
- Optical Isolator
- Internal TEC
- Thermistor
- Aiming Beam
- SOA/RSOA
Connector Options
- FC/PC Connector
- FC/APC Connector
- SMA Connector
Fiber Options
- SM Fiber
- PM Fiber
Benefits:
- Cost-Effective: standard, low-cost packaging, ideal for high-volume professional and consumer needs
- High Performance: high output power, high dynamic range, and high efficiency get you the performance you need while conserving energy and extending lifetimes
- Thermal Stability: excellent performance over temperature range and heat resistance for consistent and reliable operation with the highest powers, even in industrial and automotive applications
- “Eye-Safe” Wavelengths: SWIR wavelengths beyond 1400nm are considered retina-safe, as they transmit well through air and glass, but are readily absorbed by water (cornea)
- Patented EPI Structure: High-power with single and triple-junction at elevated temperatures, ensuring consistent performance and reliability
- Technology Integration: Low-cost packages for optical, mechanical, and electrical components, simplifying assembly, reducing costs, and enhancing reliability
- Qualified Supply Chain: Rapid scaling for timely volume production, with full lifecycle traceability and ISO certification at every level of the supply chain
- Custom Design Capability: Tailored solutions, built to your specifications, when a standard solution may not suffice. Tell us what you need!
If you have any questions or need more information, please contact us.
